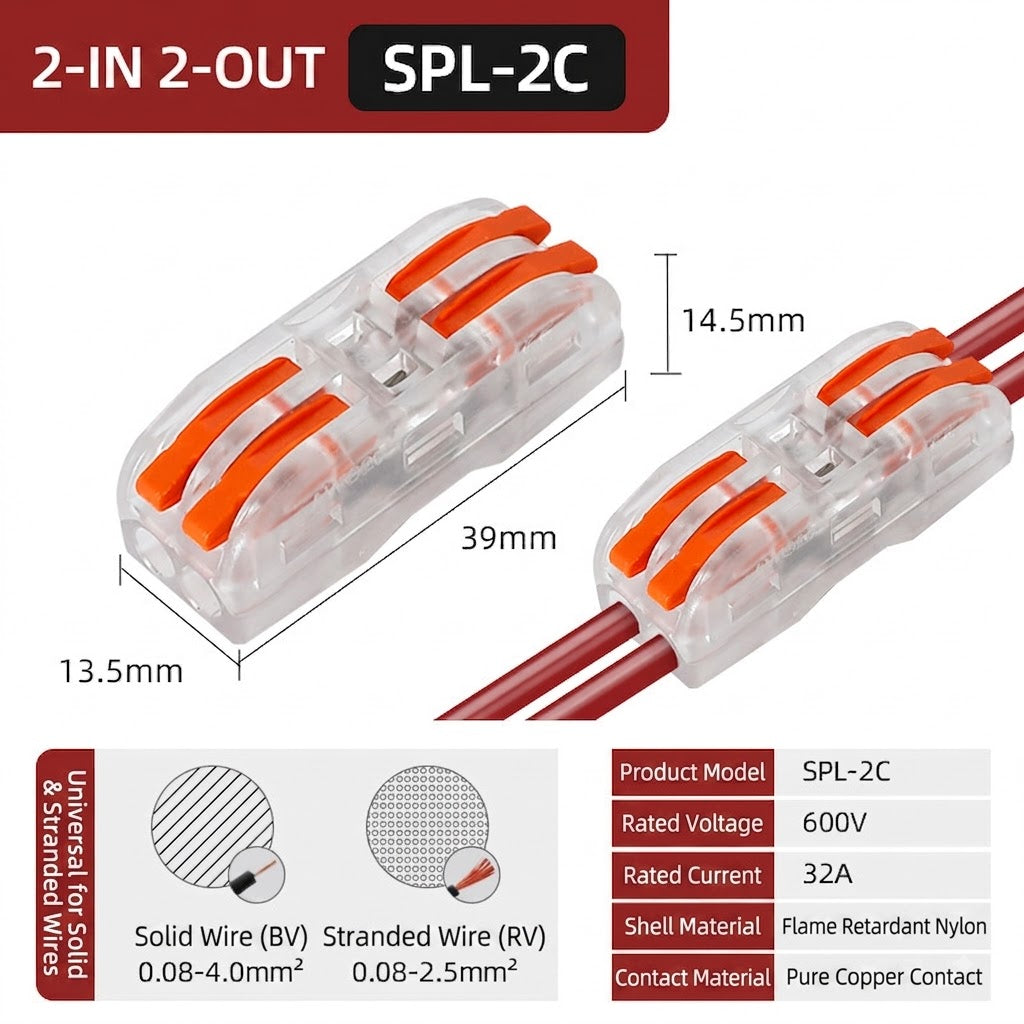

2 in 2 out Lever Wire Connector Compact Splicing Quick Connector

SPL-2C Quick Wire Connector Product Specifications

1. General Specifications

• Product Model: SPL-2C

• Configuration: 2-In 2-Out

• Wire Compatibility: Universal for Solid & Stranded Wires

2. Electrical Parameters

• Rated Voltage: 600V

• Rated Current: 32A

3. Dimensions

• Length: 39 mm

• Width: 13.5 mm

• Height: 14.5 mm

4. Wiring Range

• Solid Wire (BV): 0.08 – 4.0 mm²

• Stranded Wire (RV): 0.08 – 2.5 mm²

5. Material Specifications

• Shell Material: Flame Retardant Nylon

• Contact Material: Pure Copper Contact
